This controller is suitable for the Industrial Windbox, Invisair, Kool, Max, Maxwell, Recessed Windbox, Rotowind, Rund, Smart, Windbox and Zen air curtains.

Air only controller pictured

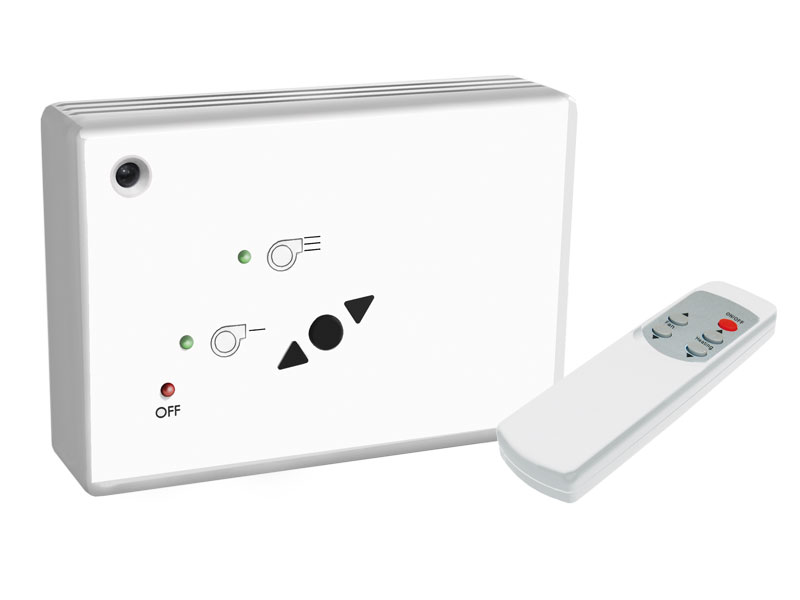

Standard manual controller

Designed for easy and quick Plug and Play connection by using a telephone cable with RJ45 connectors. Reliable connection between the control panel and the air curtain so that no information is lost, even at long distances.

Features

  • BMS enable/disable
  • 5 fans speeds
  • 3 heating stages for electrically heated units
  • Hand held infra red remote included
  • Switching of optional electro valve for LPHW heated units
  • 7 metres control cable included
  • Up to 12 units can be connected to one controller

              Options

              • Can be used in conjunction with BMS interface



              This controller is suitable for the Mini Optima and Recessed Optima air curtains.

              Air only controller pictured

              Standard manual controller

              Designed for easy and quick Plug and Play connection by using a telephone cable with RJ45 connectors. Reliable connection between the control panel and the air curtain so that no information is lost, even at long distances.

              Features

              • 2 fans speeds
              • 2 heating stages for electrically heated units
              • Hand held infra red remote included
              • Switching of optional electro valve for LPHW heated units
              • 7 metres control cable included


                            These optional controllers are suitable for the Fly, Industrial Windbox,Invisair, Kool, Max, Maxwell, Recessed Windbox, Rotowind, Rund, Smart, Windbox and Zen air curtains.

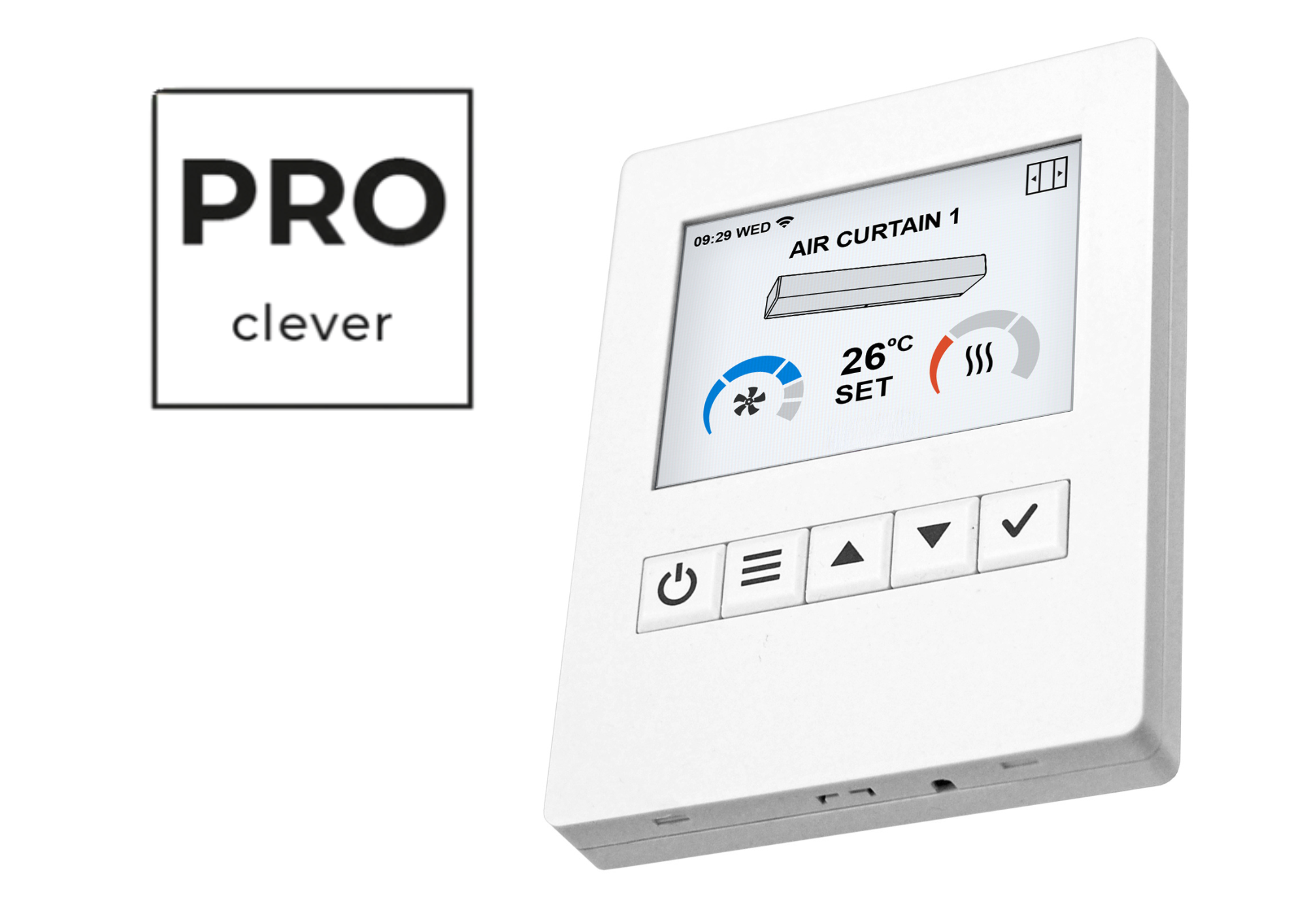

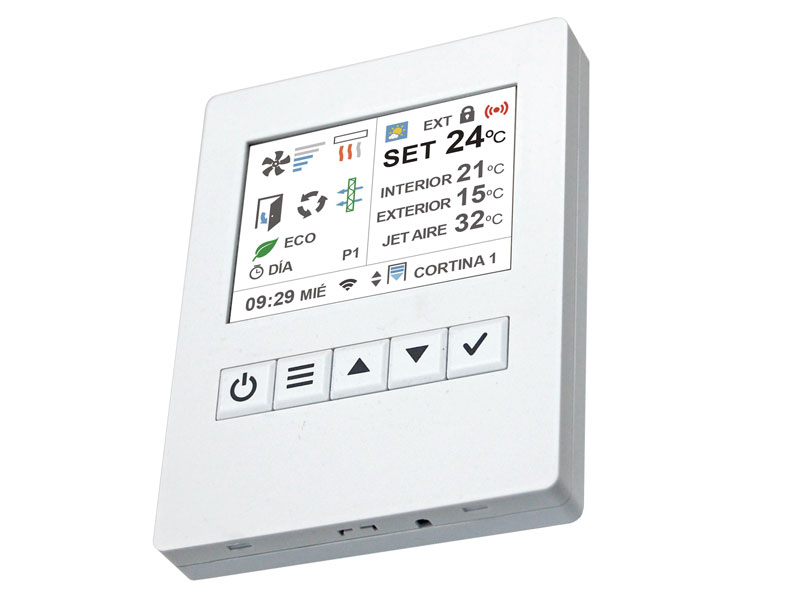

                            Clever controller

                            Clever controller

                            Wall mounted controller with colour TFT screen and temperature sensor which automatically adapts the function of the air curtain to the entrance conditions, maintaining comfort while saving energy.

                            Features

                            • BMS integration using Modbus RTU protocol
                            • Built in timer / calendar with filter cleaning alarm
                            • User friendly automatic control with manual override function included
                            • Door contact included
                            • 7 metres control cable included
                            • Additional temperature sensor included
                            • Up to 12 units can be connected to one controller


                                                    BMS interface

                                                    BMS interface

                                                    Allows the connection to a centralised building management system using volt free contacts.

                                                    Features

                                                    • Fan speeds selection
                                                    • Electrical heating stages selection
                                                    • Operate optional electro valve
                                                    • Can be used with the standard manual controller or alone
                                                    • Up to 12 units can be connected to one controller

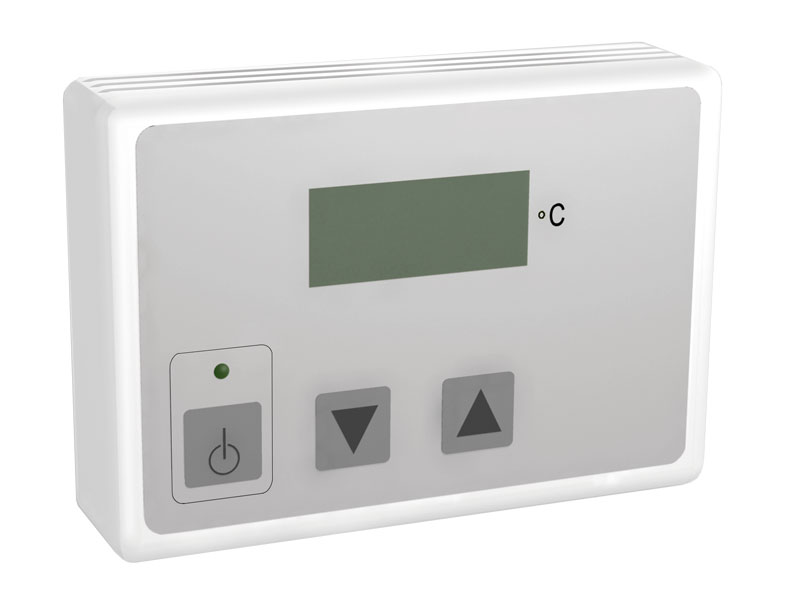

                                                                Digital thermostat

                                                                Digital thermostat

                                                                Modifies heat stages and fan speed depending on temperature and selected programme on electrically heated units.

                                                                Features

                                                                • Offers manual or automatic mode
                                                                • Programmable door delay
                                                                • Up to 12 units can be connected to one controller

                                                                            Options

                                                                            • Door contact

                                                                            BMS interface

                                                                            Hand auto

                                                                            Manual and automatic operating for water heated units.

                                                                            Features

                                                                            • Offers manual or automatic mode
                                                                            • Programmable door delay

                                                                                        Options

                                                                                        • Anti freezing sensor
                                                                                        • Door contact (recommended)
                                                                                        • Room thermostat
